PMMA

ERIKS - PMMA7PMMA tabel

General molecular structure of PMMA

PMMA molecular structure


Being highly stable under weathering conditions, easy to mould, with a high degree of transparency and light transmission (92%), these sheets are ideal for manufacturing signs, lettering and lighting.
Their high optical quality also makes them suitable for certain magnifying glasses, lenses or prisms, and even for mirrors.

Other advertising and sales point displays, canopies, partitions, domes ....can also be made from these sheets.
Available in different thicknesses, they can also be ordered in other
colours such as opal and with different engraved surfaces (amongst which we should mention the so-called technical engravings: Nº 3, Nº 16, Nº 57... highly recommend for lighting applications) or with anti-glare finish (Arraglass).

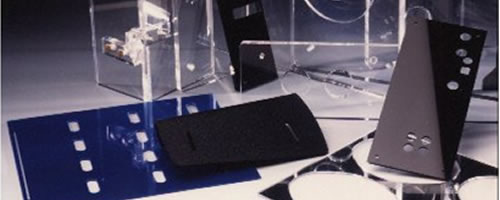

ERIKS - PMMA4ERIKS - PMMA1ERIKS - PMMA2

Arraglass Option

Exposure with glassExposure with Arraglass
The ultraviolet radiation
from the sun causes the
image's colours to fade
The anti-fading treatment
of the sheets preserves
the vividness of the colours
almost like the original image.
  • It is possible to provide sheets with an anti-glare finish. This property makes it especially suitable for protecting all types of photographs, paintings, diplomas, poster...
  • A smooth crystal product with anti-fading protection (not anti-glare) is available on demand.
  • Main advantages of Arraglass compared to glass: Anti-reflection, Impact resistant, Lightweight with good rigidity, Easy to handle

A lot of other special coatings are possible:

  • Colour coating (many possibilities)
  • All anti abrasion coatings are available with a MATT aspect
  • Anti drop coating
  • Water spreading coating
  • Anti Fog coating
  • Scratch resistant and anti-graffiti-effect

All those coatings are available from a minimum quantity of 5 sheets!


Cast Acrylic Blocks - RXbloks


Clear colour - Delivery programme posibilities (49kB)


PMMA extruded sheets Product RangeSheets per pallet thickness in mm
PatterncolourLight transmissionsizes1,522,534568101215
plainclear
3050x2050806050403025201512107

opal 20540%3050x2050
6050403025





opal 51175%3050x2050
60
40






ERIKS - PMMA

Tolerances PMMA
Length+/- 2 mm
Width+/- 1 mm
Square3 mm
Thickness< 2,5 mm +/- 10%
> 2,5 mm +/- 5%

Cast Acrylic Sheets - RXacryl


cast acrylicFor application with a high quality of design, it is necessary to use "cast PMMA".
The properties are the almost same like extruded PMMA but the appearance is quite different because without defect and possibility to see the extrusion line.
With cast PMMA, it is also possible to produce blocks and sheets up to a thickness of 60 mm.

Special coating specific for PMMA sheets
Abrasion coatings
Scratch resistant
KASI® - GL (104kB)
  • Scratch-resistance
  • Surface hardness: 5H
  • Climatic and chemical resistance
Scratch resistant, cold forming
KASI® - GL Flex (96kB)
  • Scratch-resistance
  • Good cold-forming capability
  • Climatic and chemical resistance
Scratch resistant , UV-curing:
KASI® - UVP (95kB)
  • Scratch-resistance
  • High surface hardness: 7H (UV-curing)
Antistatic coatings
Antistatic, easy to clean
KASI® - AS (76kB)
  • Antistatic, reduced electrostatic charging
  • Easy to clean (nanomere addition)
  • Little blue aspect
Antistatic, scratch resistant
KASI® - AS-Hart (89kB)
  • 2 properties together: antistatic and scratch resistance
  • Translucent aspect
Delivery programme possibilities

ERIKS typeDefinitionDelivery programme
RXacryl
  • Clear colours, UV resistant
  • Clear colour UV transmitting for sunbeds
48kB
RXacryl white and opal
  • White and opal colours
48kB
RXacryl translucent
  • 32 different translucent colours
49kB
RXacryl Fixed
  • Fixed colours
  • Neutral colours
49kB
RXacryl transparent
RXfluo
RXaglass
  • Transparent colours
  • fluorescent colours
  • colour of glass
50kB
RXpolar A.R.
RXblack and white
  • polarised and matt surface
  • with black and white effect
48kB
RXacryl colours of the '70s
  • The colours of the 70' in opal, transparent or with on one side matt surface
49kB
RXsand
  • Both side frost
  • Dual satin aspect

49kB

RXmetallic

RXmetallic Matt

RXreflex

RX pearl

  • Metallic effect only for inside using
  • Metallic Matt UV resistant for outside using
  • RXreflex with different reflections upon the light
  • Perlescent whites colours
53kB
